Technical Specifications of Kappa RF Dual System 8.2 MHz

Frequency: 8,2 MHz RF
Weight: RX 5,5 kg ; TX 5,5 kg
Power supply: 18V AC 45 VA  or 24V DC 2,1A

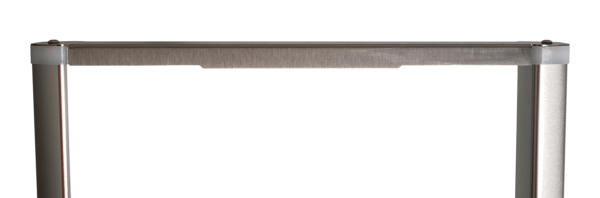

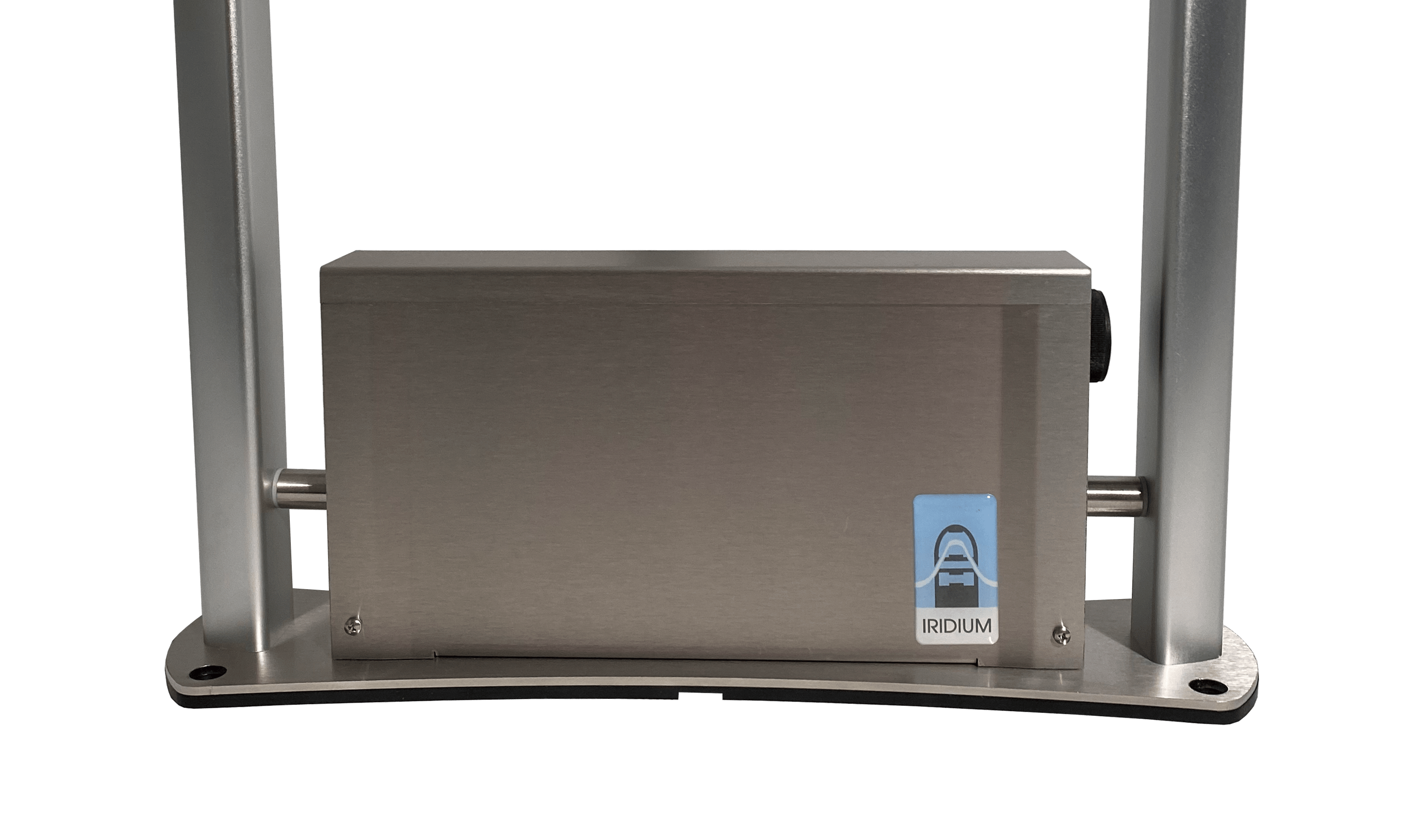

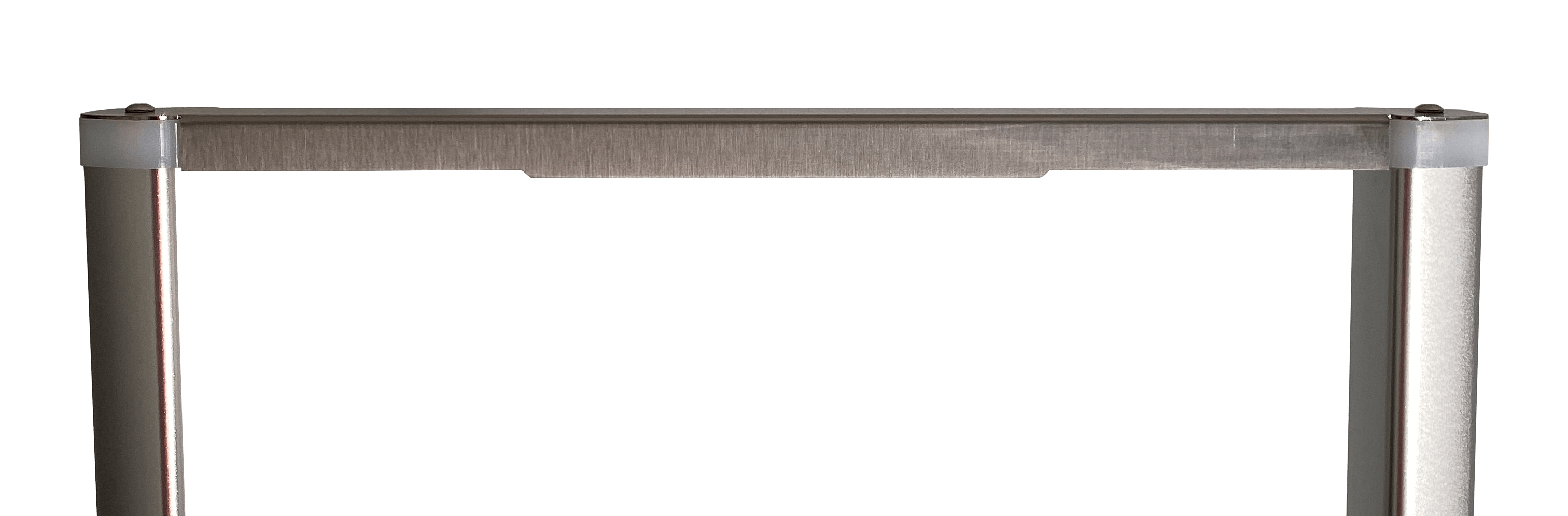

Material: anodized aluminium profiles, stainless steel box, base plate and top cover, 2 horizontal bars
Alarm sound: piezosirene, 100dB loudness

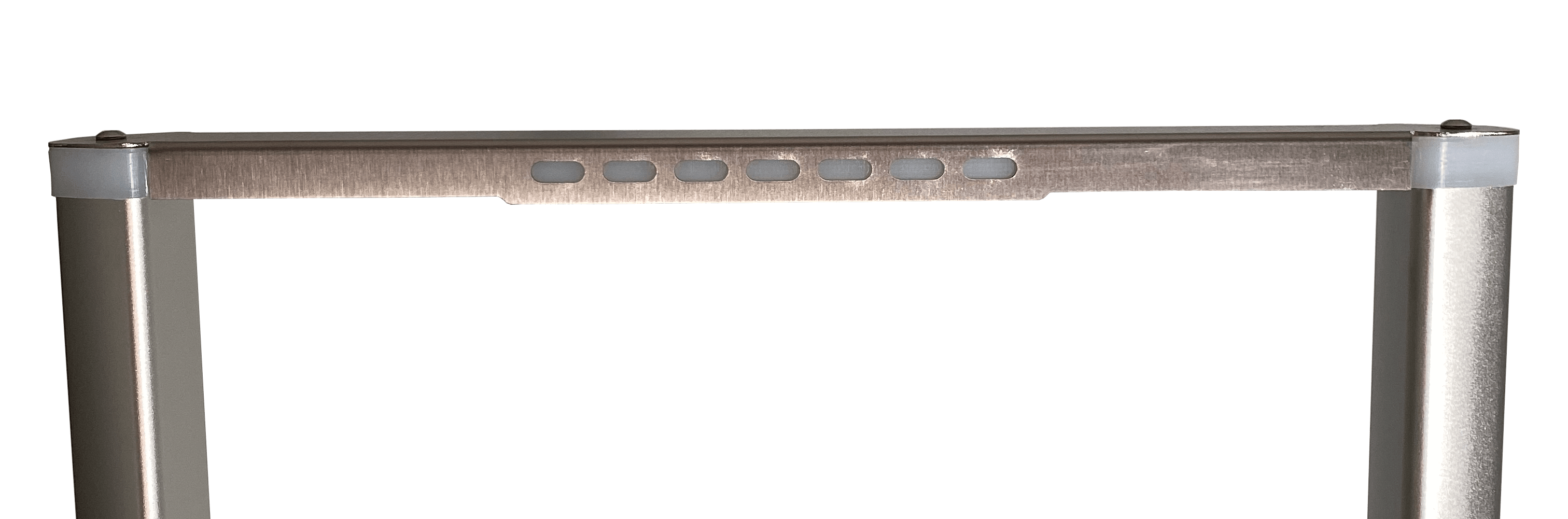

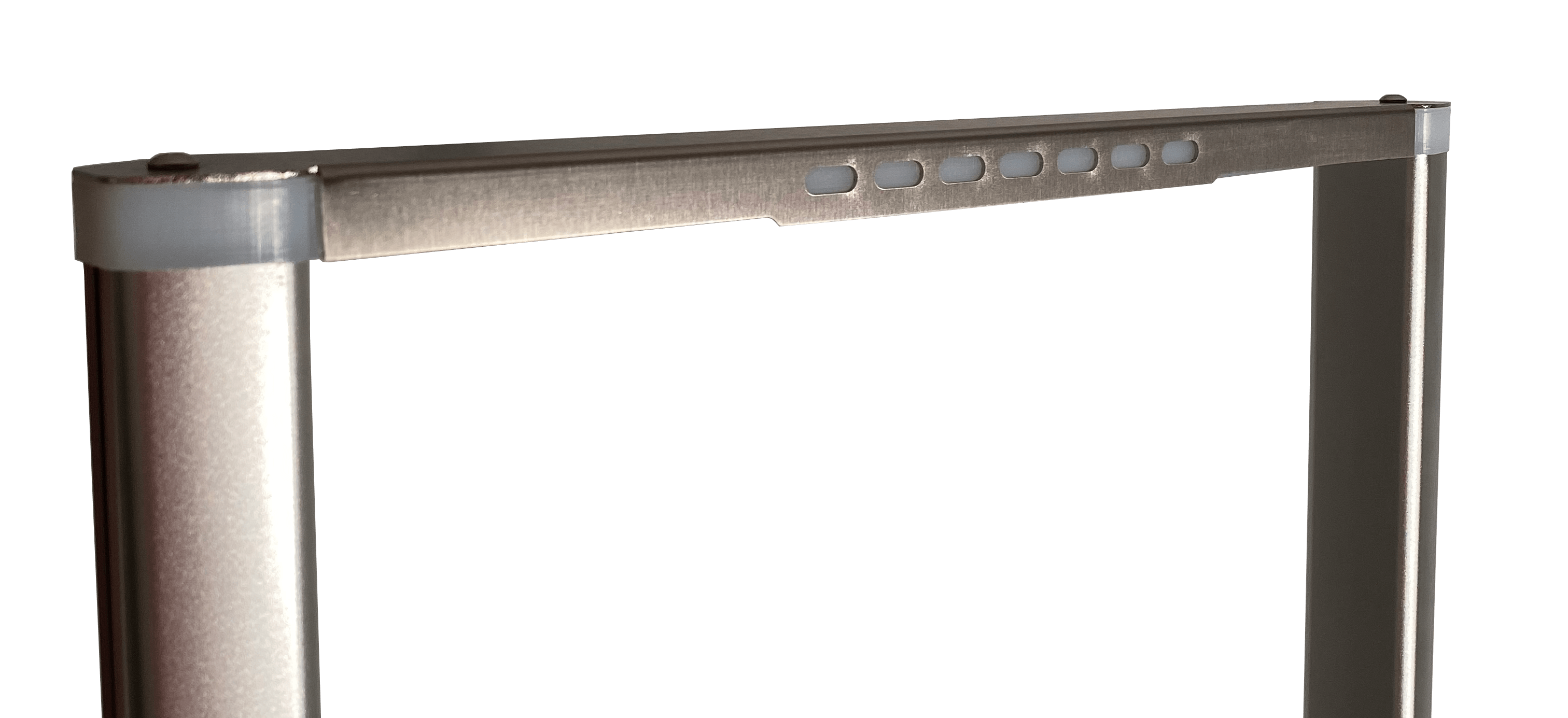

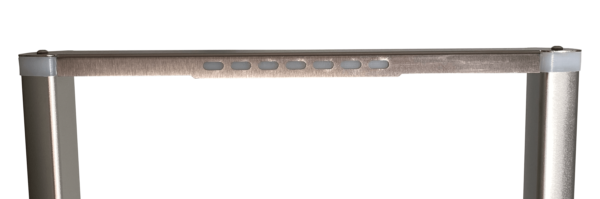

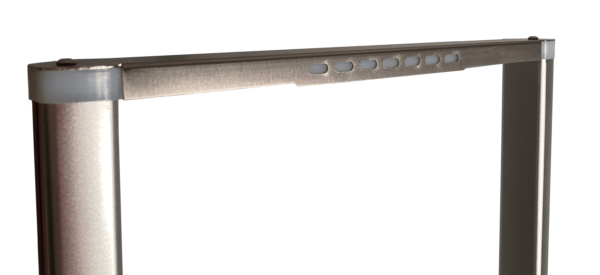

Alarm light: red colour LEDs

General information:

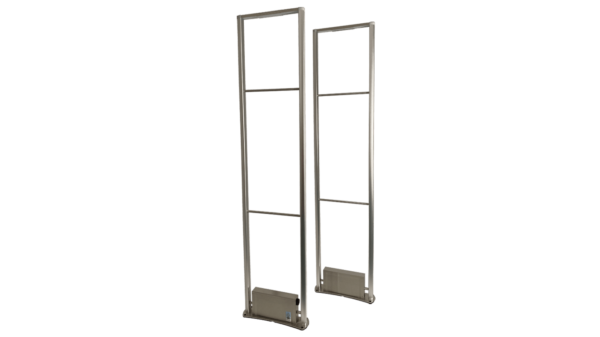

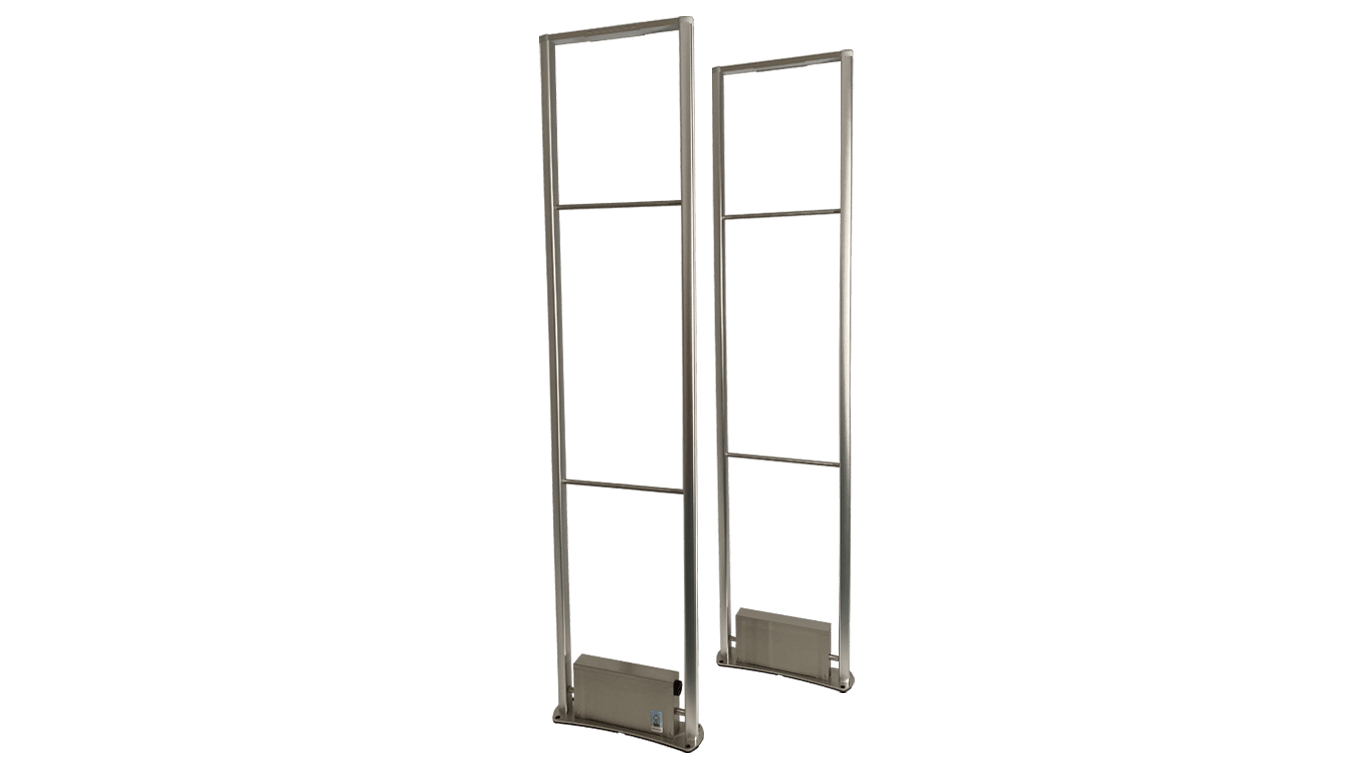

◉ Consists of two independent antennas – TX (transmitter) and RX (receiver) – connected by a data link
◉ Possible to synchronize a virtually unlimited (up to 100) number of systems
◉ Detects all types of RF (radio frequency) 8.2 MHz tags – hard tags and paper labels as well
◉ Features stability and good detection in noisy environments
◉ Can be supplied by AC 18V or DC 24V adapter

Remote Control via internet:

◉ All parameters can be set up via remote WiFi internet connection


◉ Electronics boards (RX and TX) are fully digital, using real-time signal processing
◉ Selecting different modes and setting the parameters can be done using buttons
◉ Values are shown on the display of the electronics board (both TX and RX)
◉ The sweeping frequency can be set between 150Hz and 400Hz

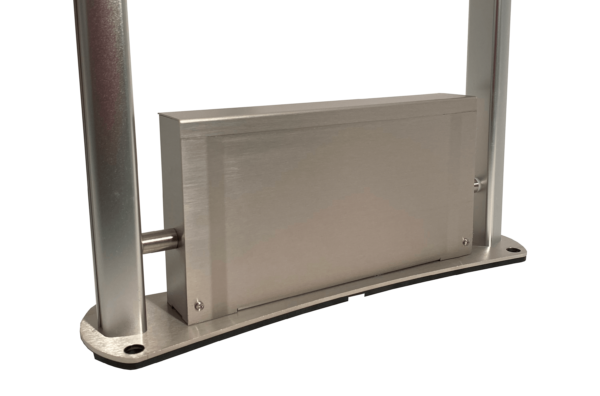

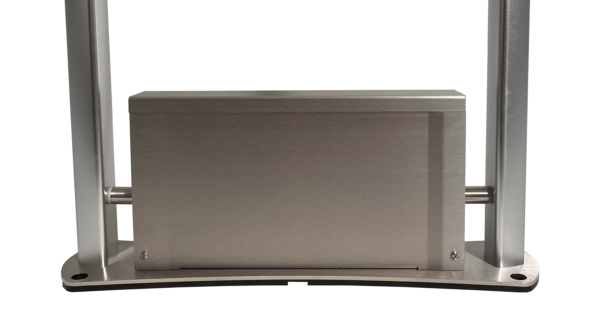

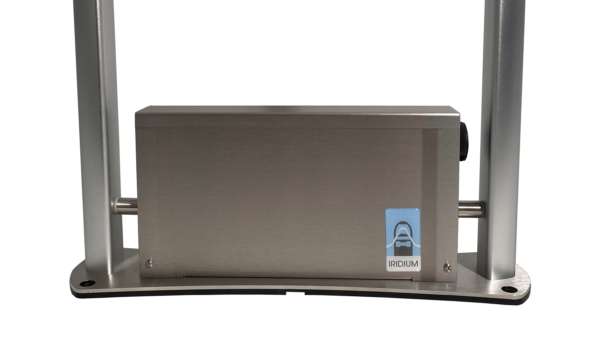

◉ The electronics are covered with a thin metal cover which provides shielding from outside noise and prevents
unauthorized interference. All important data needed for the setting of the electronics are printed on the cover.
◉ It is very easy to replace the electronics if necessary
◉ The frequency of the transmitter is continuously and automatically tuned to the adjusted value
(between 7.45MHz and 8.75MHz) with a step of 50kHz


Detection distances table:

paper labels 3 x 3,9cm 1,0 – 1,1 m
paper labels 4 x 4cm 1,1 – 1,2 m
paper labels 5 x 5cm 1,15 – 1,25 m
hard tag D50 1,5 – 1,6 m
hard tag D40 1,3 – 1,4 m
mini square 1,3 – 1,4 m
Detection of tags depends also
on their quality (Q-factor values)

Drawings and technical information of this data sheets issued for marketing purposes only and may not be reproduced or used to manufacture anything shown or referred to hereon without permission from IRIDIUM LTD.
