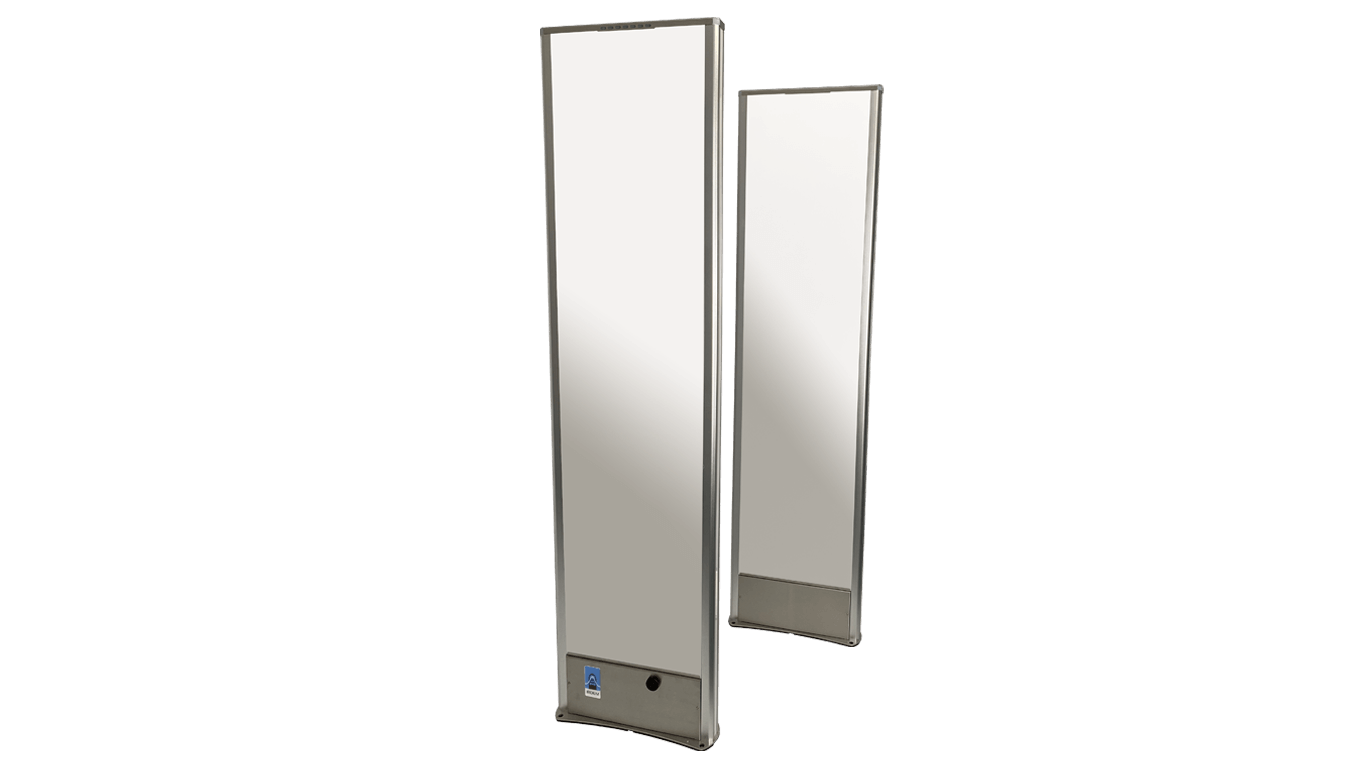

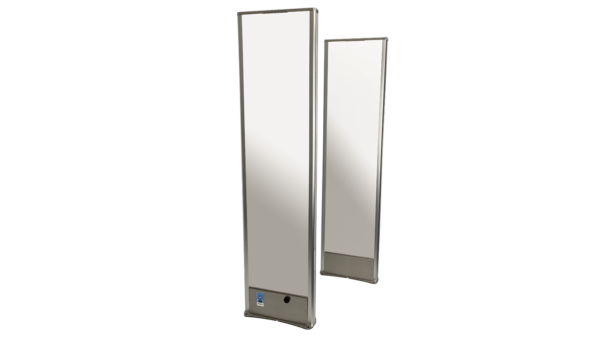

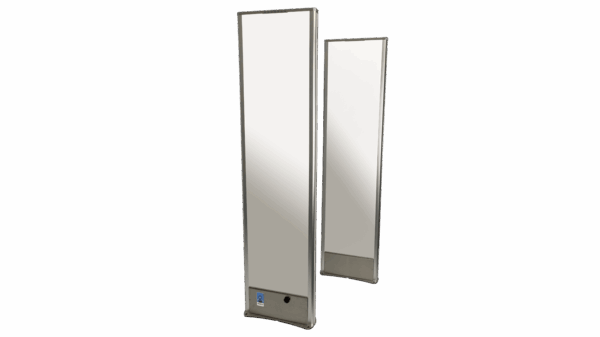

IRIDIUM Omega Advert AM

Different System Color:


IRIDIUM Omega Advert AM

AM System 58 kHz for tags and DR labels

Technical Specifications of Omega Advert AM:

Frequecy: 58kHz
Weight Master: 12,8 kg
Weight Slave: 12,2 kg
Power Supply: PS 18V AC 60VA
Material: Anodized aluminium profile ABS + transparent plast

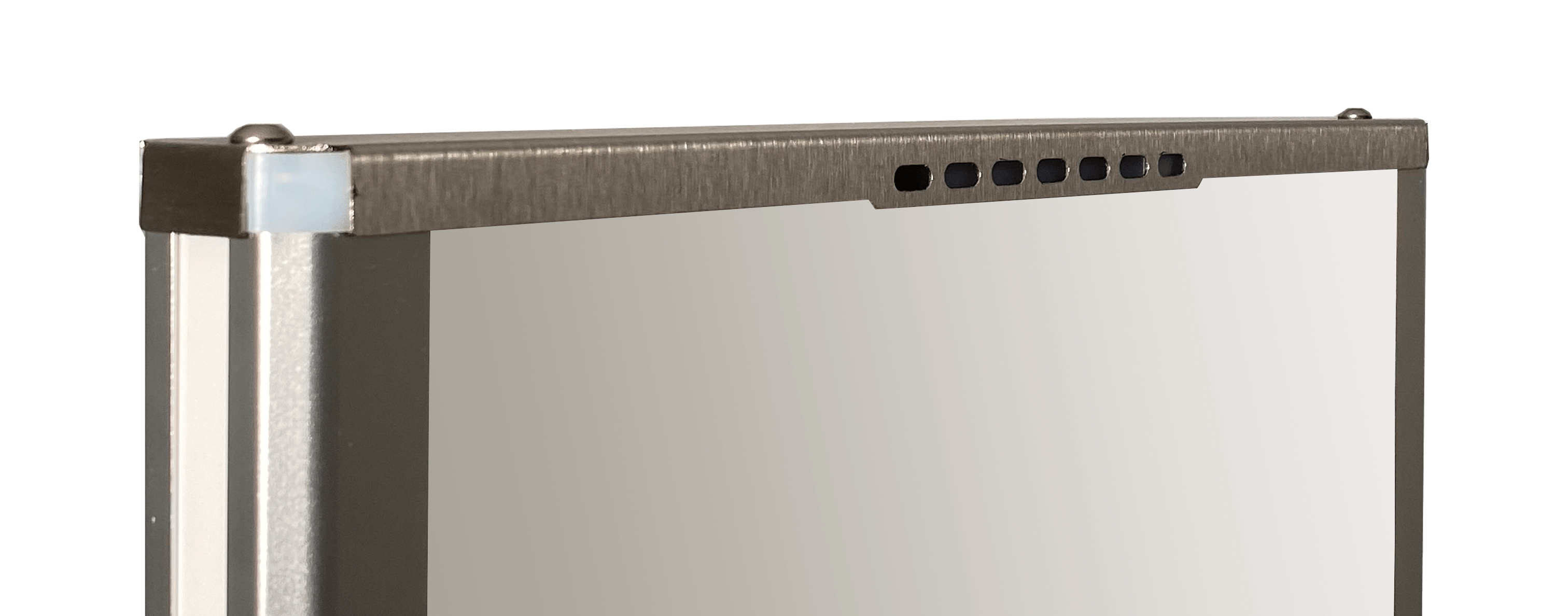

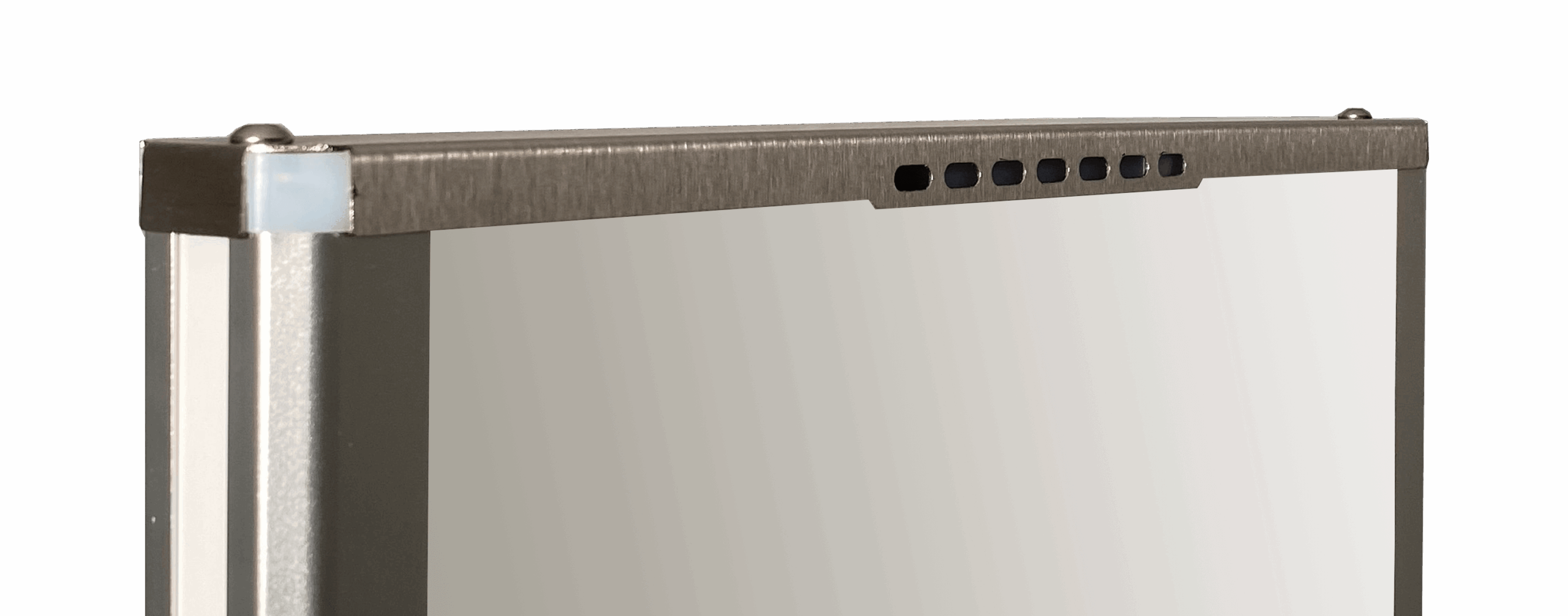

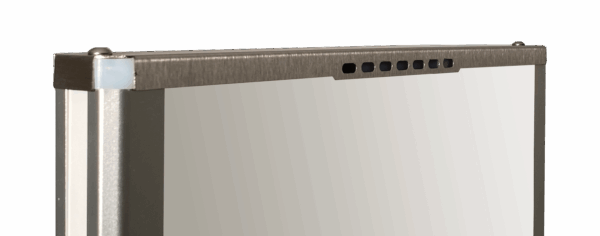

Alarm light: red colour LED with white plastic cover

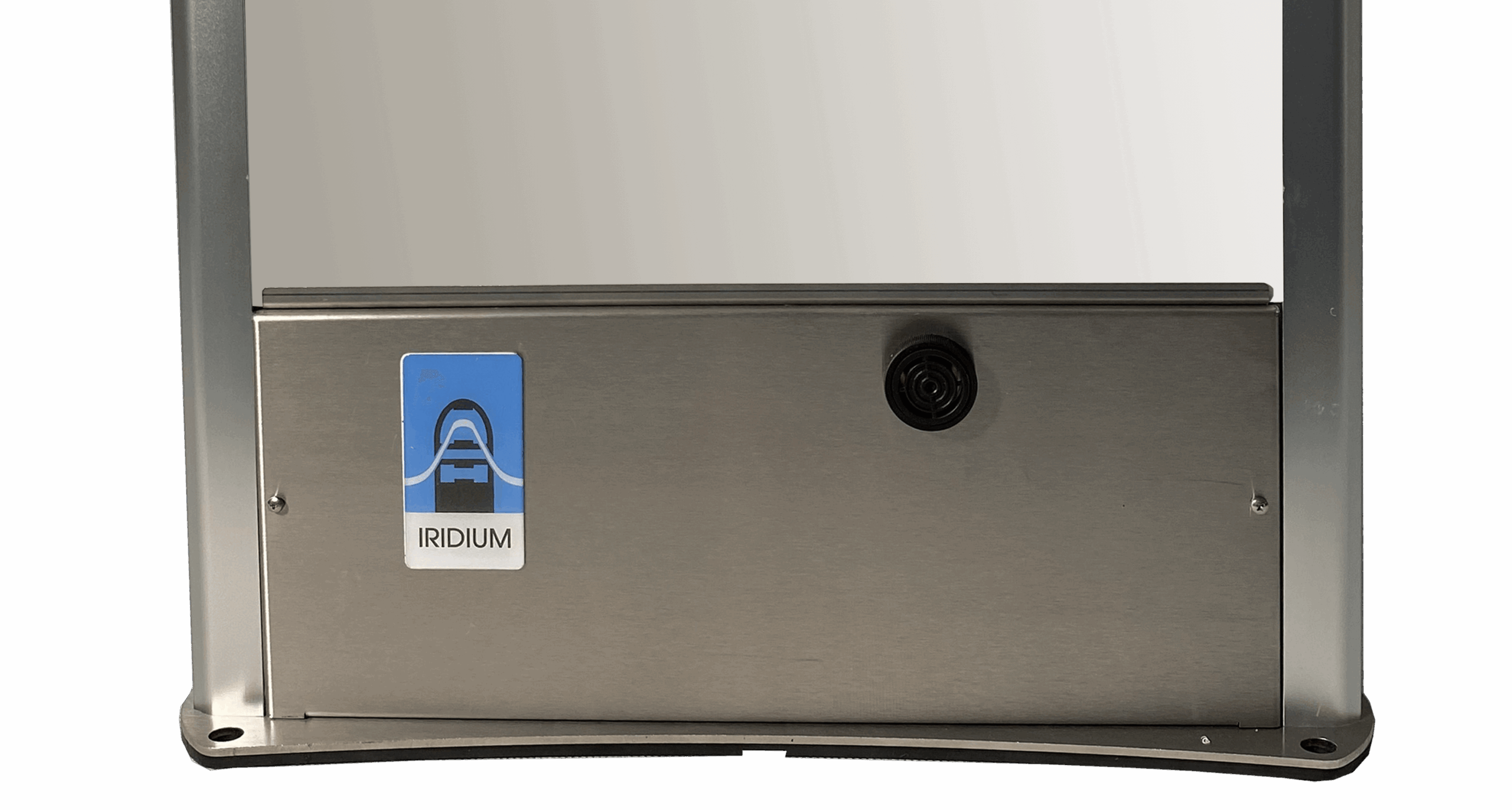

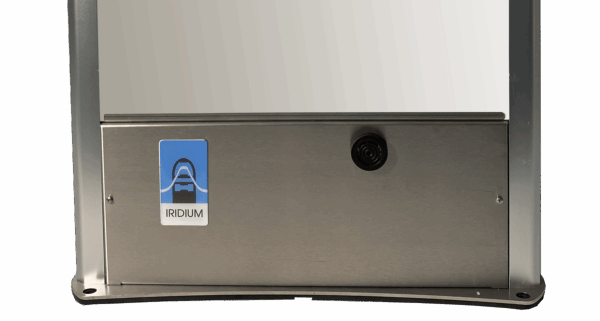

Alarm sound: small piezosirene, 100dB loudness

General information:

◉ Acousto Magnetic System operating at 58kHz
◉ Detects Dr.labels & hard tags
◉ Fully digital System with the latest DSP technologyusmod tempor
◉ Minimum false alarm
◉ Remote diagnostic available
◉ Available in Mono and Dual version as well
◉ Advertising booklets could be from both sides of antenna

Remote Control via internet:

◉ All parameters can be set up via remote WiFi internet connection


Detection distances table:

Hard tag 2 m
DR labels 1,6 m
Hard tag 1,2 m
DR labels 1 m
Detection of tags depends also
on their quality (Q-factor values)

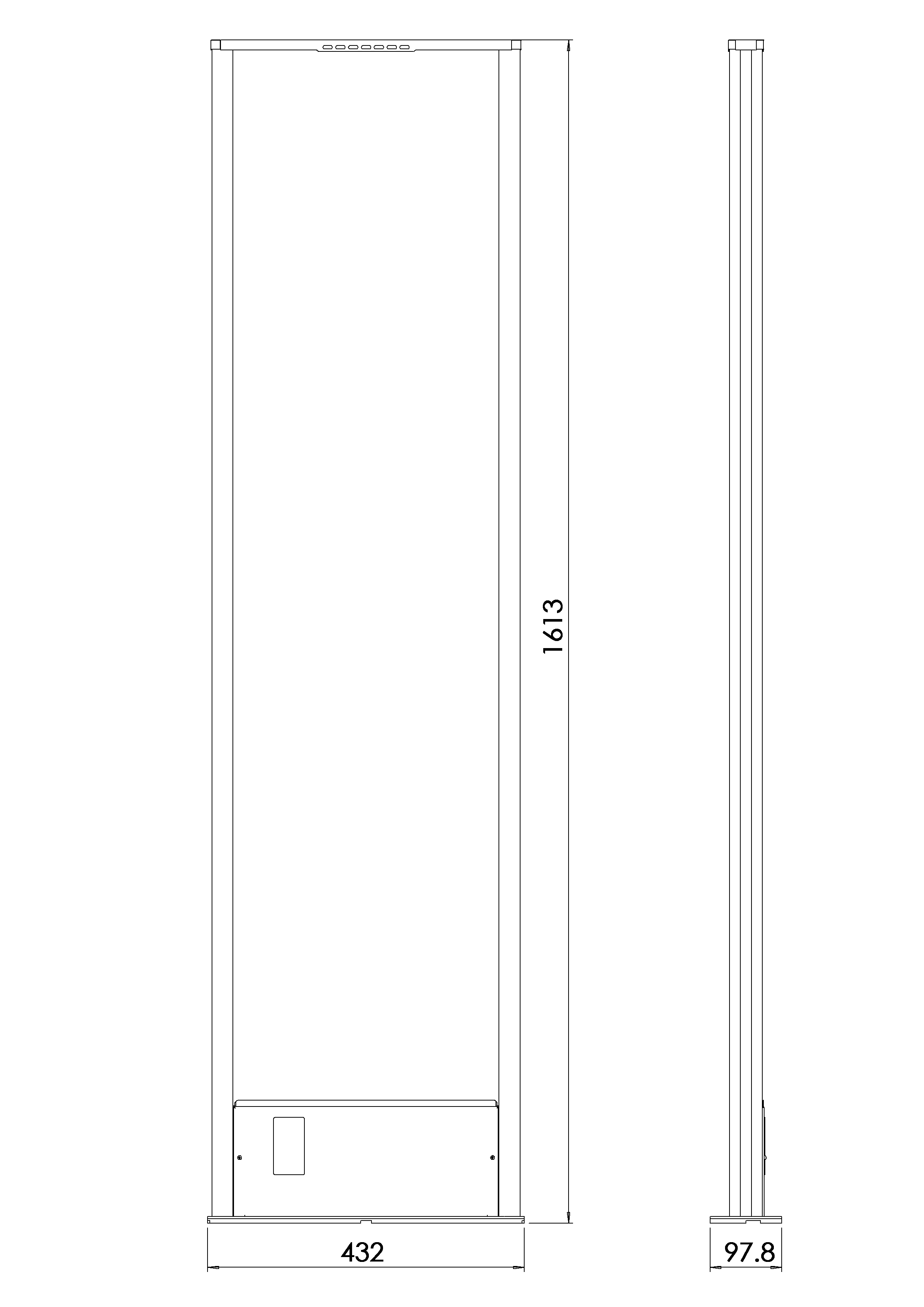

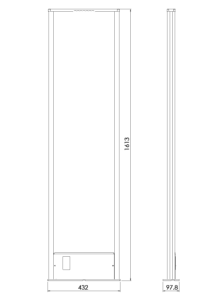

Drawings and technical information of this data sheets issued for marketing purposes only and may not be reproduced or used to manufacture anything shown or referred to hereon without permission from IRIDIUM LTD.

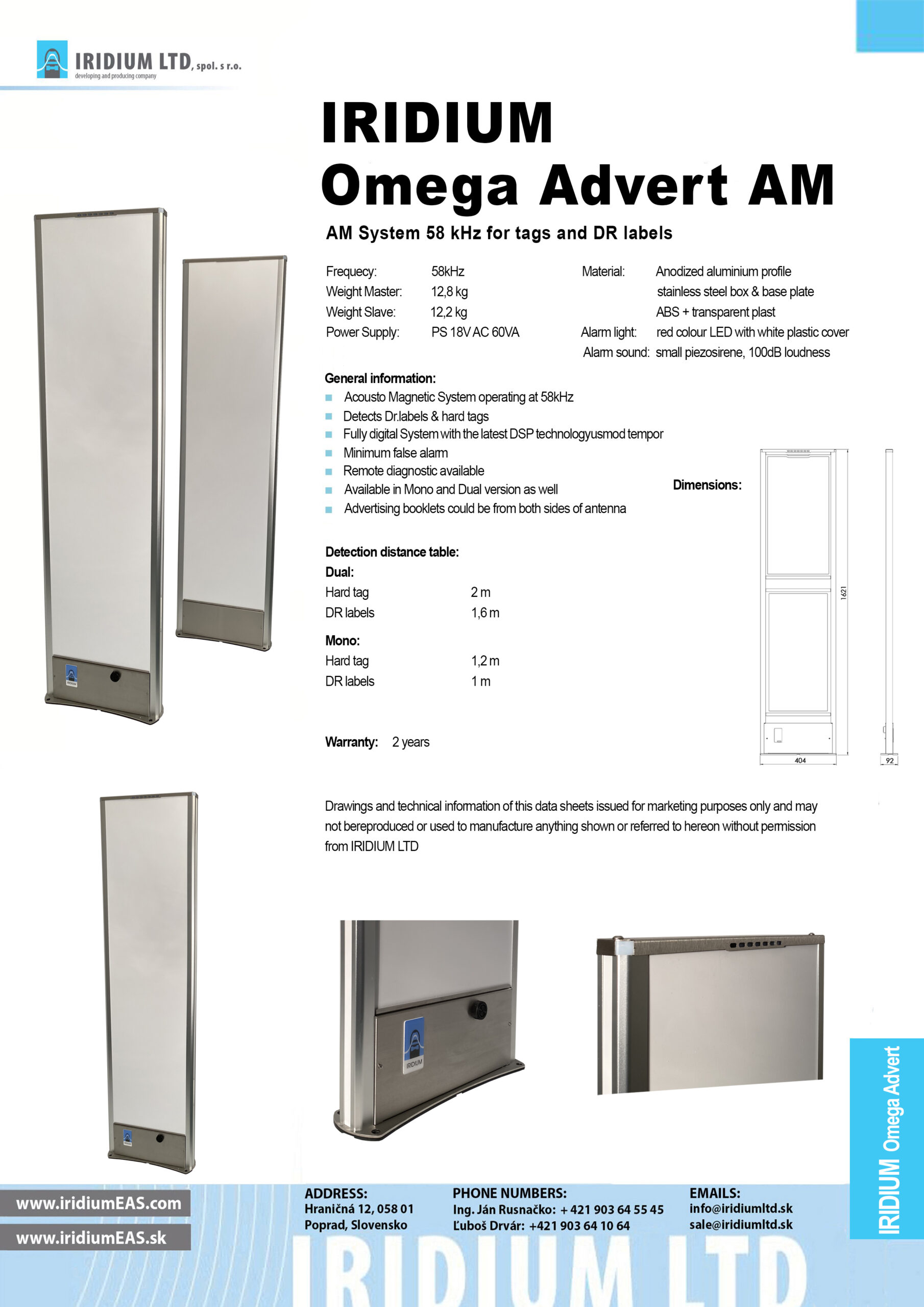

Please click on photo and download datasheep:
